Flexible Fittings & Connections

A flexible connection is a small part with outsized consequences: it isolates vibration, contains product and dust, survives the process, and has to mate exactly to the equipment above and below it. GQI pairs the Filcoflex® range with hands-on application engineering, so the part you receive is the part the process needs, not the closest thing off a shelf.

The GQI Approach

Don't Settle for a Catalog. Made to Fit.

Filcoflex®: specified, configured & delivered through GQI

Every connection is reviewed against the equipment, product, movement, and environment before it is built, not just sized to a diameter. Interface standards, membrane, and compliance are locked in at specification, so what arrives fits the first time.

Application-engineered, never catalog-default
Tri-Clamp, Jacob, band-clamp, DIN/ANSI & bulk-bag interfaces
Membrane options: PU, rubbers, silicone, PTFE, fabrics
Hazardous & combustible dust rated builds (ATEX-certified)
FDA / EC food-contact compliance specified up front
Full traceability: EN 10204 3.1 certificates

Download Flexibles Overview

Filcoflex FDM flexible connection with pressed-on Jacob coupling flange

Connection Families

These families cover the great majority of powder- and bulk-handling interfaces, and any of them can be built as a custom fitting.

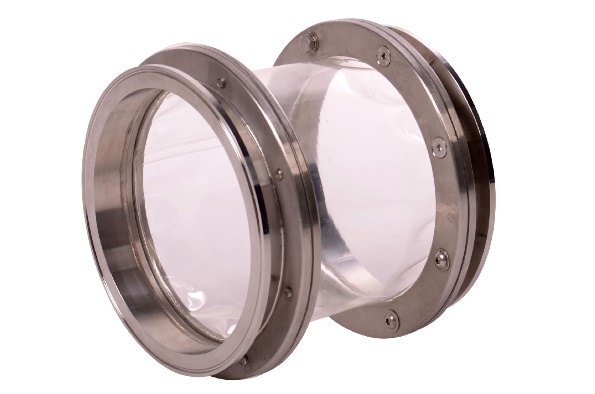

Tri-Clamp

Sanitary clamp connections: pressed-on (LFR), bolted-reusable (LFDDC), or conical-lipped (CFL), with tool-free access for cleaning and inspection.

BS 4825 · DIN 32676 · ISO 1127 · ASME BPE

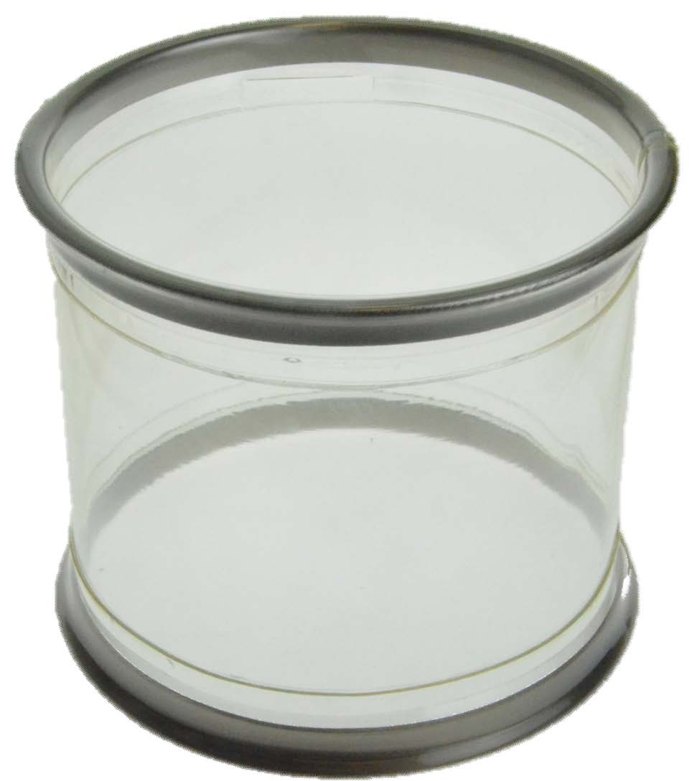

Jacob

Pull-ring / Jacob-coupling connections (FDM pressed-on, FSC stitched-in): the industrial pneumatic-conveying standard, tool-free with replaceable gasket.

Jacob 60 – 630 · ID 57 – 628 mm

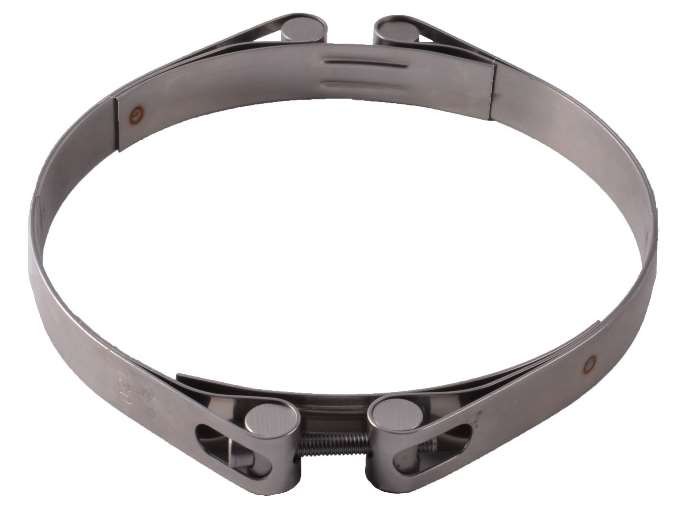

Band Clamp / Hose-Clamp

Sleeve clamped to a spigot or stub: pressed-in, padded, or unfinished ends for the widest size range, round or rectangular.

KLB band series · Ø 28 – 2300 mm

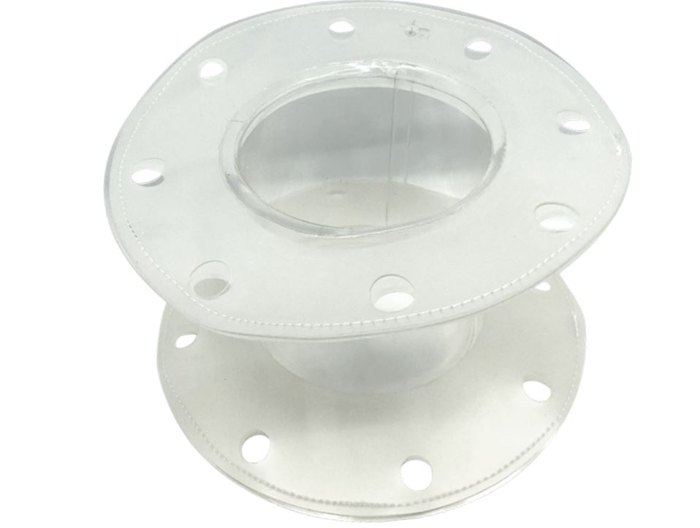

Flange Fitted

Bolted DIN or ANSI flange connections, with optional reinforcement rings for vacuum or overpressure duty.

DIN DN25 – DN300 · ANSI 1″ – 12″

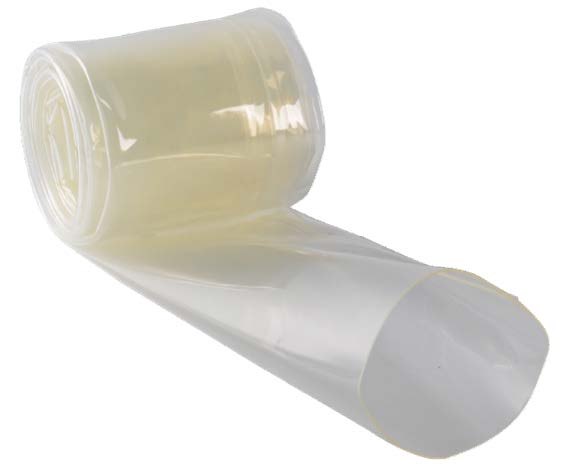

Bulk Hoses & Rolls

Flexible hose supplied by the roll: polyurethane, seamless silicone or rubber, and wire-reinforced spiral builds.

Cut-to-length · seamless & spiral options

The configurator walks the full selection (family, geometry, membrane, compliance, fittings) and returns a complete, validated specification.

Configure a Connection →

Connection Types

Geometry is selected independently of the connection family; any type below can be built with tri-clamp, Jacob, band-clamp, or flange ends.

Straight

Side A and side B the same: constant diameter, matching fittings both ends. The standard connection for drops and convey lines between matching interfaces.

Step Bellow

Steps between two different diameters in one flexible piece; connects mismatched equipment without a rigid reducer.

Conical Bellow

A smooth taper between diameters that keeps product moving: no ledges or dead zones for material to hang up on.

Weigh Bellow

Vibration-isolated connection for load-cell accuracy: decouples dosing equipment, mixers, and vessels on load cells from the lines around them. Weighing-grade 0.3 mm PU membranes; conical, spherical & step geometries; silicone builds for −60 to +200 °C.

Cap

A flexible end cap that blanks off an unused inlet or outlet: dust-tight, quick-release, and reusable for ports that see periodic access.

Breather Bag

Vents displaced air during filling and discharge while keeping product and dust contained: air-permeable antistatic fabric with Jacob, tri-clamp, hose-clamp and snap-in ends.

Connection Hardware

Clamps, Ferrules & Accessories

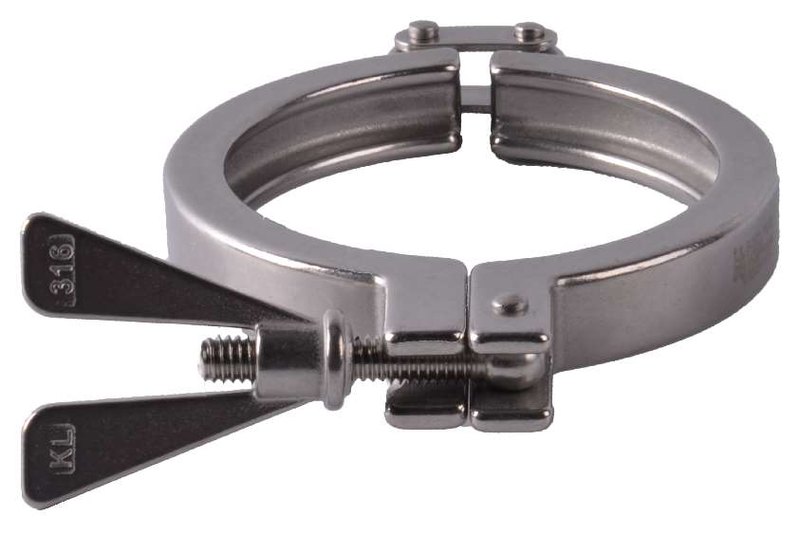

Everything that completes the connection: matching ferrule pairs, single-pin, wing-nut and bolted heavy-duty clamps, FDA gaskets in EPDM, silicone and PTFE, hose clamps, ground studs, and air-regulator kits for bulk-bag seals.

Replacement clamps, gaskets, and wear parts for connections already in service live in Aftermarket Parts.

Explore Aftermarket Parts →

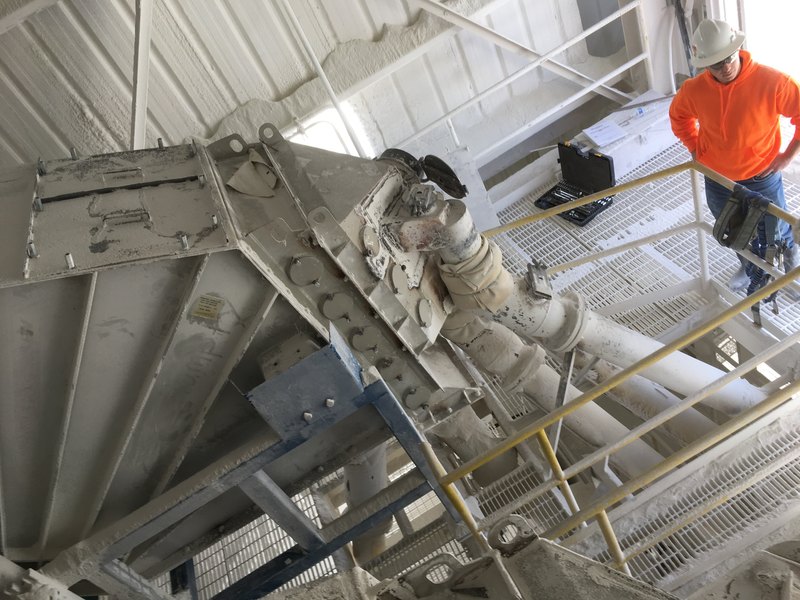

GQI engineer walking down a plant during an on-site flexible connection audit

On-Site Service

The GQI Flexible Connection Audit

Every connection cataloged, tagged & one call from replaced

Hire GQI to audit your flexible connections. We come to site and review the process from start to finish, cataloging every point where flexibles are used. Each point is identified, tagged, and assigned a custom, location-specific part number, with stock and supply options for inventory and quick-ship replacements. From then on, replacement is as easy as contacting GQI with the part number, and it's delivered.

Site-wide walkdown & catalog of every flexible
Tagged, location-specific part numbers
Inventory & quick-ship supply options
One-call replacement ordering

Schedule an Audit

Powered by Filcoflex

Filcoflex BV designs and manufactures engineered flexible connections in polyurethane, silicone, rubber, and textile for bulk-product transport, with in-house engineering, custom production in small quantities, and options through NFC-chip traceability and STEP files for your CAD models. GQI is the authorized North American distribution and integration partner: application engineering, specification, and support in your time zone.

About Filcoflex →

From Specification to Solution

Configure the exact connection online, or send your application details and let GQI's engineers validate the selection: fittings, compliance, and documentation already accounted for.

Configure a Connection → Email sales@gqind.com (773) 234-8003
